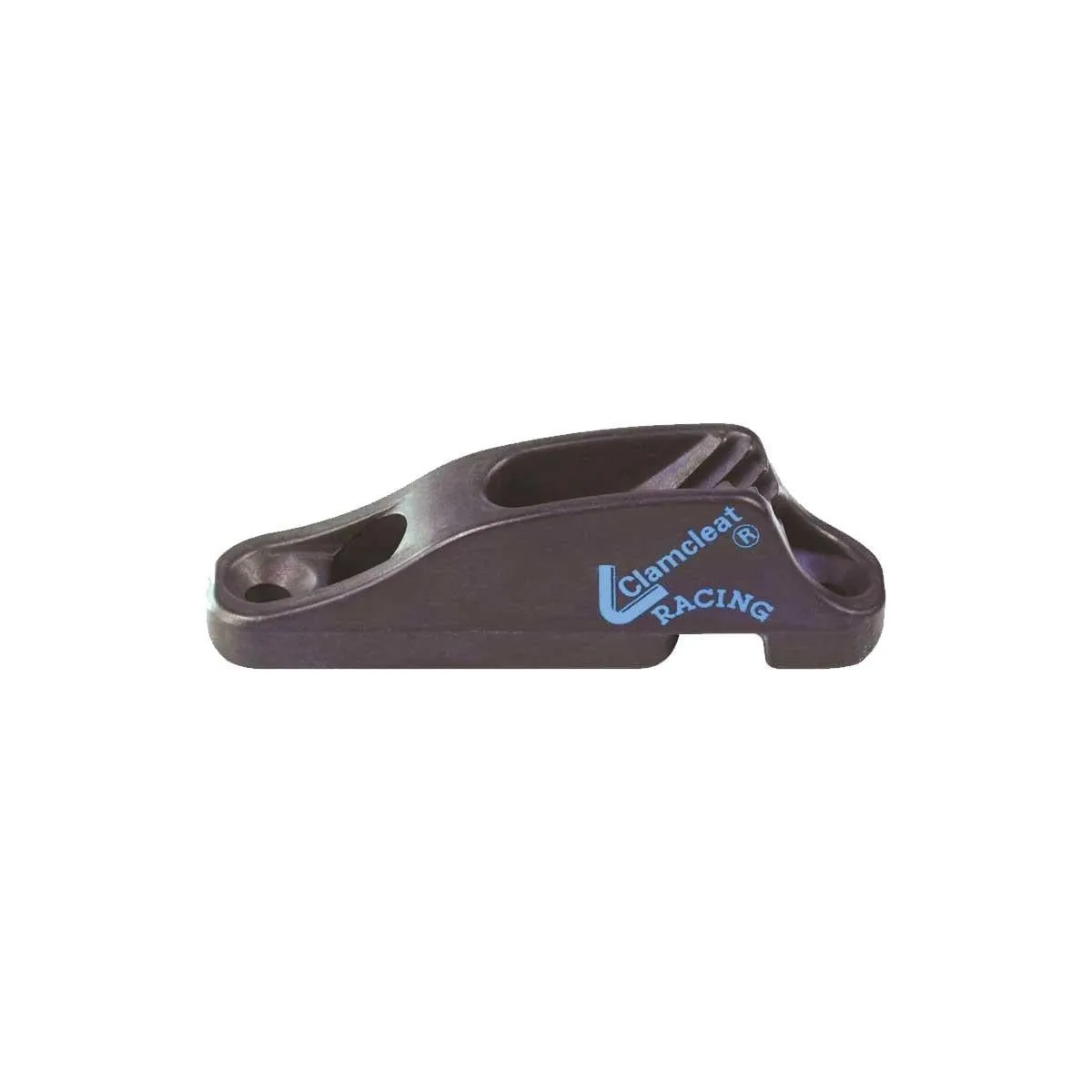

Clamcleat Racing Junior Mk1 with Becket - Hard Anodised

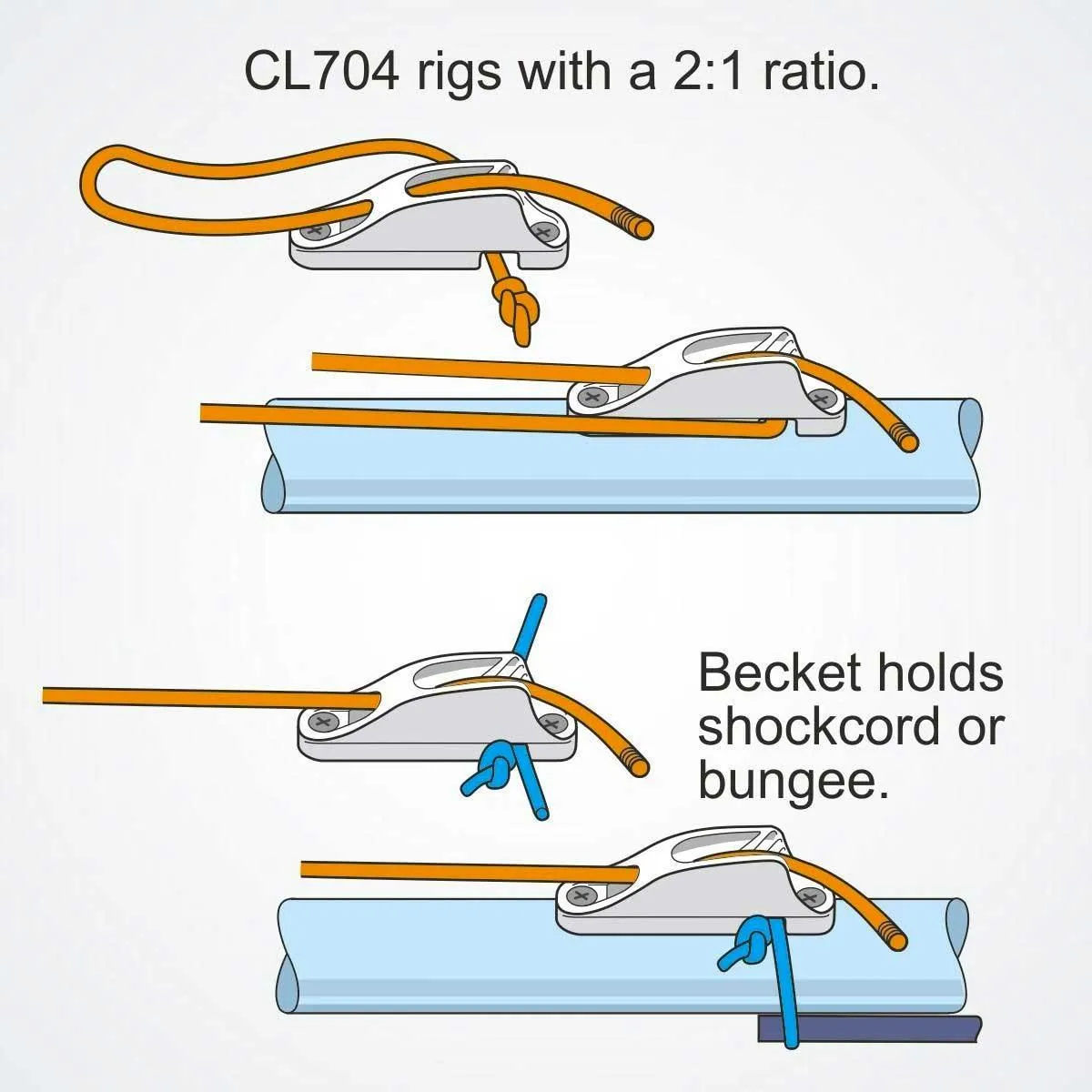

The becket on this Clamcleat holds the end of the rope under the cleat. This means there is no need for an extra fixing on the boat and a purchase system can be created.
Manufactured from aluminium for a light weight and durable performance the CL704AN comes with a hard anodised finish.
This cleat is popular for use on the Laser/ILCA and Topper sailing dinghies. It's class legal on the Laser/ILCA and is used at the back of the cockpit so your traveller can cleat and your shockcord elastic for the hiking strap can go under the cleat.

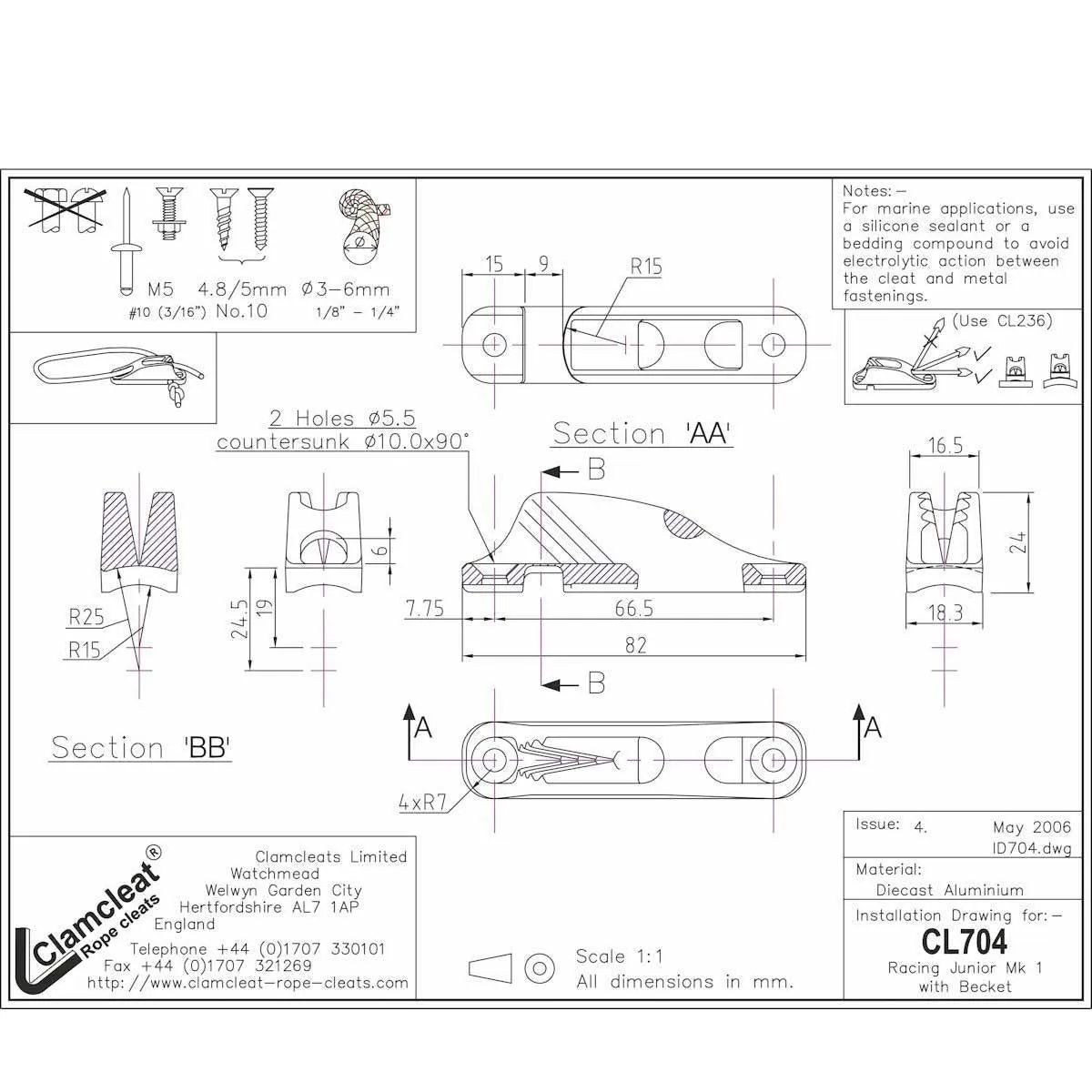

Specifications
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter | 3 - 6mm | 1/8 - 1/4" | |
| Material | Aluminium | Aluminium | |
| Hole Centres | 66mm | 2 5/8" | |
| Length | 82mm | 3 1/4" | |
| Width | 18mm | 11/16" | |
| Height | 24mm | 15/16" | |
| Bolt Size | M5 | #10-24. 3/16" | |
| Screw Size | 4.8 | No 10 | |
| Weight | 34gms | 1.2oz |
