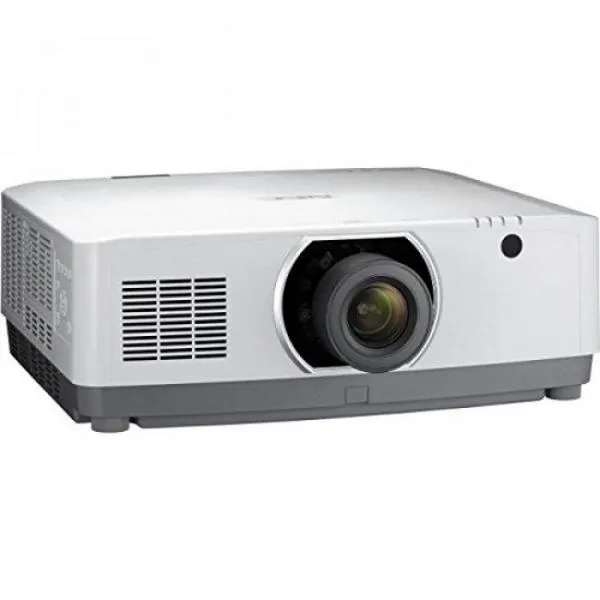

The PA Series NP-PA653UL 6500-Lumen WUXGA LCD Professional Installation Laser Projector from NEC features multi-display capabilities and TileMatrix technology. This processing is all done internally and therefore eliminates the additional hardware typically required to produce a 4K resolution image. Built-in stacking correction capabilities (up to four projectors) allow the projector to boost an image's brightness up to 32,000 Lumens, which is suitable for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector. The projector's laser lamp provides up to 20,000 hours of laser life.
The PA Series projectors feature edge blending, which lets the projector seamlessly blend multiple projected images to display a single high-resolution image. The built-in HDBaseT support simplifies your installations. The projector is optimized for video applications and supports uncompressed Full HD digital video, audio, Ethernet, power, and various control signals. With only a single cable (up to 328') to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage.
Specifications
- White Brightness:6,500 ANSI Lumens
- Resolution:1920x1200
- Aspect Ratio:16:10 (WUXGA)
- Dynamic Iris:Yes
- Display Type:0.76" 3LCD Chips
- Color Processing:8-bit
- Video Modes:720p, 1080i, 1080p/60, 1080p/24, 1080p/25, 1080p/30, 1080p/50, 2160p/60, 576i, 576p, 480p, 480i
- Data Modes:MAX 4096x2160
- 3D Modes:Full HD 3D
- Lamp Type:Laser Phosphor
- Lamp Life:20,000 hours / 5,000 hours (Eco)
- Included Lens:2.3x Powered zoom , Powered focus
- Optional Lenses
- NP40ZL Zoom 0.79:1-1.11:1
- NP43ZL Zoom 2.88:1-5.93:1
- Lens Shift:Horizontal /-20% & Vertical 50% / -10%
- Throw Distance:10.6' - 45.9' Calculate Throw Distance
- Image Size:49.62" - 499.64"
- Throw Ratio:1.30:1 - 3.02:1 (D:W)
- Digital Zoom:Yes
- Digital Keystone:Horizontal & Vertical
- Projector Size:8.20" x 22.80" x 19.40" (HxWxD)
- Weight:40.1 lbs
- Audible Noise:39 dB / 33 dB (Eco)
- Internal Speakers:10.0 Watts Mono
- Power:672 Watts 100V - 240V
- Connection Panel
- Audio In: Mini Jack
- Audio Out: Mini Jack
- DisplayPort
- HDBaseT: RJ-45
- HDMI (HDCP 2.2) x 2
- Network: RJ-45
- RS232: DB-9pin
- USB
- VGA In: Dsub-15pin
- VGA Out: Dsub-15pin
- Features
- Picture-in-Picture
- Full HD 3D
- Edge Blending
- Geometric Correction
- Lens Memory
- Crestron RoomView™
