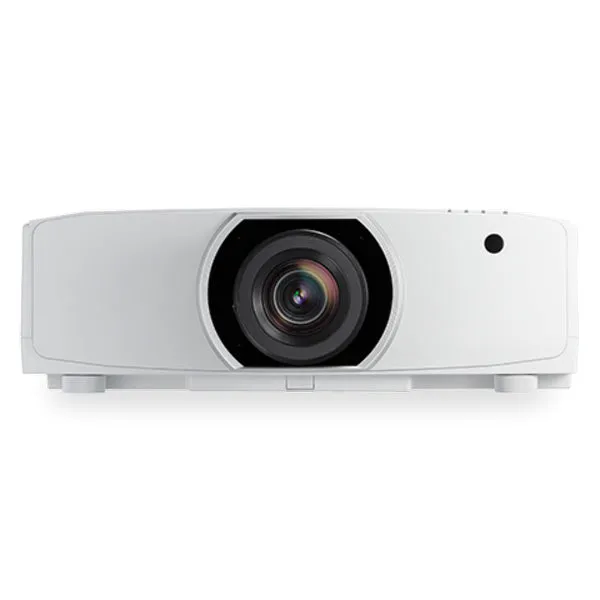

NEC's PA803U is a 8000-lumen widescreen advanced professional installation model that appeases higher education and corporate users. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional powered lenses (lens shift, focus and zoom), tilt-free and portrait installation capabilities along with built-in edge bledning and stacking. The HDBaseT input and seperate HDBaseT loop out provide single connections for uncompressed full HD digital video, audio, ethernet power and various control signals.
Specifications
- White Brightness:8,000 ANSI Lumens
- Resolution:1920x1200
- Aspect Ratio:16:10 (WUXGA)
- Contrast:10,000:1 (full on/off)
- Dynamic Iris:Yes
- Display Type:0.76" 3LCD Chips
- Color Processing:8-bit
- Video Modes:720p, 1080i, 1080p/60, 1080p/24, 1080p/25, 1080p/30, 1080p/50, 2160p/60, 576i, 576p, 480p, 480i
- Data Modes:MAX 4096x2160
- 3D Modes:Full HD 3D
- Lamp Type:370W AC bulb
- Lamp Life:4,000 hours / 5,000 hours (Eco)
- Lamp Model:NP42LP Buy Replacement Lamp
- Included Lens:2.3x Powered zoom , Powered focus
- Optional Lenses
- NP11FL Short Fixed 0.81:1
- NP12ZL Zoom 1.19:1-1.54:1
- NP13ZL Zoom 1.49:1-2.97:1
- NP14ZL Zoom 2.96:1-4.73:1
- NP30ZL Zoom 0.81:1-1.05:1
- NP40ZL Zoom 0.81:1-1.13:1
- NP42ZL Zoom 2.93:1-5.88:1
- NP43ZL Zoom 2.88:1-5.93:1
- Lens Shift:Horizontal /-20% & Vertical 50% / -10%
- Throw Distance:8.5' - 46.6' Calculate Throw Distance
- Image Size:40.00" - 500.00"
- Throw Ratio:1.32:1 - 3.03:1 (D:W)
- Digital Zoom:Yes
- Digital Keystone:Horizontal & Vertical
- Projector Size:6.60" x 19.80" x 16.20" (HxWxD)
- Weight:22.5 lbs
- Audible Noise:39 dB / 33 dB (Eco)
- Internal Speakers:10.0 Watts Mono
- Power:566 Watts 100V - 240V
- Connection Panel
- Audio In: Mini Jack
- Audio Out: Mini Jack
- DisplayPort
- HDBaseT: RJ-45
- HDMI (HDCP 2.2) x 2
- Network: RJ-45
- RS232: DB-9pin
- USB
- VGA In: Dsub-15pin
- VGA Out: Dsub-15pin
- Features
- Picture-in-Picture
- DICOM
- Full HD 3D
- Edge Blending
- Geometric Correction
- Lens Memory
- Blackboard Mode
- Crestron RoomView™
