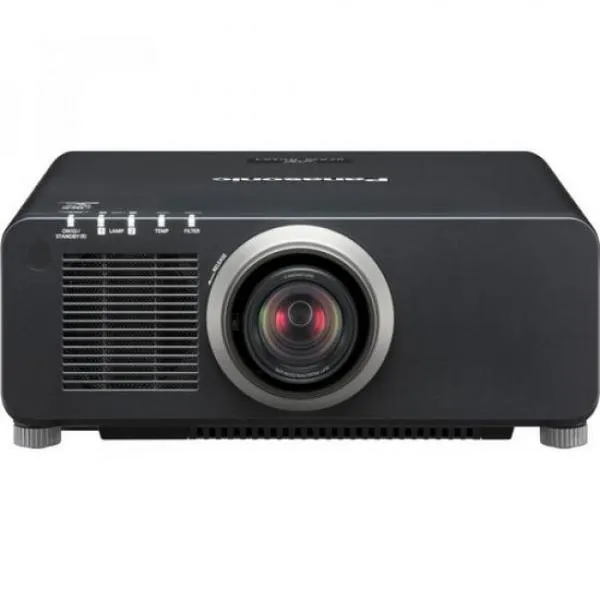

The PT-DZ870 series features many of the advanced functions in Panasonic's flagship 3-chip DLP projectors. With its superior performance and expanded application flexibility, the series will set standard for 1-chip DLP projectors. Panasonic's RGB booster achieves high image quality with levels of color reproduction and brightness that make each color stand out. It combines Panasonic's proprietary Vivid Color Control technology with a lamp modulation drive system for a 1-chip DLP projector that produces bright and vivid colors. This has been further advanced in the PT-DZ870 series with the development of the dynamic RGB booster. The PT-DZ870 features native WUXGA resolution for full-HD viewing. This brings you lifelike projection of intricate, highly detailed images.

Specifications

• Brightness:8,500 ANSI Lumens
• Resolution:1920x1200
• Aspect Ratio:16:10 (WUXGA)
• Dynamic Contrast:10,000:1
• Dynamic Iris:Yes
• Display Type:0.67" DLP x 1
• Color Processing:8-bit
• Video Modes:720p, 1080i, 1080p/60, 1080p/24, 1080p/25, 1080p/30, 1080p/50, 1035i, 576i, 625i, 1125i, 480p, 480i
• Data Modes:MAX 1920x1200
• 3D Modes:PC 3D Ready
• Lamp Type:420W UHM bulb x 2
• Lamp Life:3,000 hours / 8,000 hours (Eco)
• Lamp Model:ET-LAD120 Buy Replacement Lamp
• Included Lens:1.4x Powered zoom , Powered focus
• Optional Lenses
•

•

•

•

•

•

• ET-DLE030 Fixed 0.38:1
• ET-DLE055 Fixed 0.80:1
• ET-DLE085 Zoom 0.80:1-1.00:1
• ET-DLE150 Zoom 1.30:1-1.90:1
• ET-DLE250 Zoom 2.30:1-3.60:1
• ET-DLE350 Zoom 3.60:1-5.40:1
• ET-DLE450 Zoom 5.40:1-8.60:1
• Lens Shift:Horizontal /-10% & Vertical 50%
• Throw Distance:8.0' - 25.0' Calculate Throw Distance
• Image Size:47.17" - 208.10"
• Throw Ratio:1.70:1 - 2.40:1 (D:W)
• Digital Zoom:Yes
• Digital Keystone:Horizontal & Vertical
• Projector Size:7.87" x 19.61" x 21.89" (HxWxD)
• Weight:40.3 lbs
• Audible Noise:40 dB / 35 dB (Eco)
• Internal Speakers:No
• Power:1,030 Watts 120V - 240V
• Connection Panel
• Composite: BNC
• DVI Digital Input
• HD-SDI: BNC
• HDBaseT: RJ-45
• HDMI
• Network: RJ-45
• RGB In: BNC
• RS232: DB-9pin
• VGA In: Dsub-15pin
• Features
• PC 3D Ready
• Picture-in-Picture
• 2:3 Pulldown
• Closed Captioning
• DICOM
• Operate 24/7
• Edge Blending
• Geometric Correction
• 2:2 Pulldown
• Crestron RoomView™
