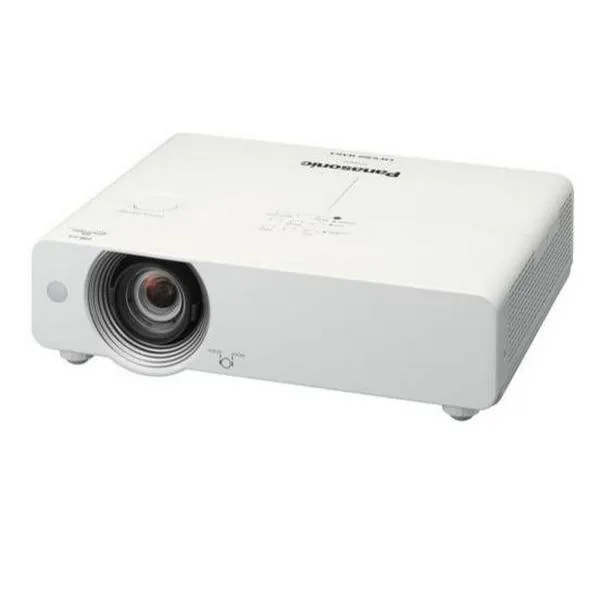

The Panasonic PTVW431DU Compact Projector with Digital Link has a high brightness of 4,300 Lumens and WXGA resolution and is based on Valens HDBaseT technology. It allows easy and simple digital connection of HDMI, other full uncompressed HD videos, audio and control commands, all through a single Cat 5e/6 LAN cable. This facilitates clean wiring that ensures efficiency and saves cabling cost for education and corporate users.
Specifications
- White Brightness:4,300 ANSI Lumens
- Resolution:1280x800
- Aspect Ratio:16:10 (WXGA)
- Contrast:3,500:1 (full on/off)
- Dynamic Iris:Yes
- Display Type:0.59" 3LCD Chips
- Color Processing:8-bit
- Video Modes:720p, 1080i, 480p, 480i
- Lamp Type:280W UHM bulb
- Lamp Life:2,500 hours / 4,000 hours (Eco)
- Included Lens:1.6x manual zoom , manual focus
- Optional Lenses:No
- Lens Shift:Vertical 48%
- Throw Distance:4.0' - 25.0' Calculate Throw Distance
- Image Size:29.79" - 299.81"
- Throw Ratio:1.18:1 - 1.90:1 (D:W)
- Projector Placement
- For a
- 100
- diagonal screen, place the projector lens between 8'-4" and 13'-5" from the screen.
- Digital Keystone:Vertical only
- Projector Size:4.20" x 14.90" x 12.00" (HxWxD)
- Weight:10.6 lbs
- Audible Noise:37 dB / 29 dB (Eco)
- Internal Speakers:10.0 Watts Mono
- Power:365 Watts 100V - 240V
- Connection Panel
- Composite: RCA
- HDBaseT: RJ-45
- HDMI
- Network: RJ-45
- RS232: DB-9pin
- S-Video
- VGA In: Dsub-15pin x 2
- Features
- Closed Captioning
- Soft Carrying Case
- Crestron RoomView™
- Additional Features
- Digital Link for all-in-one connectivity. The Daylight View Basic function ensures clear images even in brightly lit rooms
