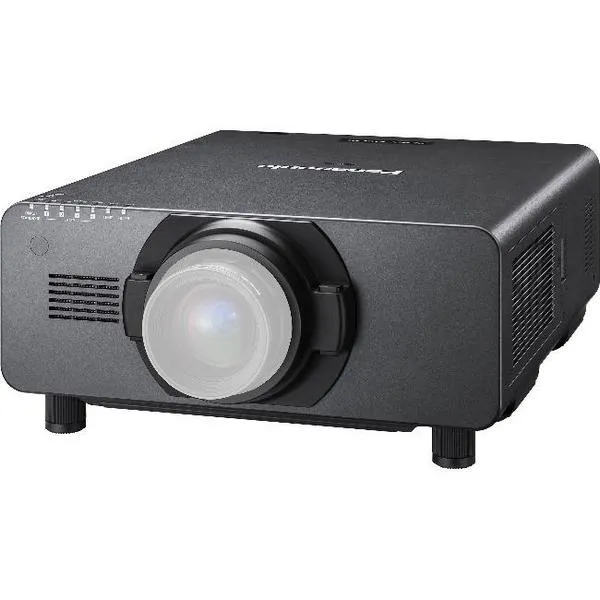

The PT-DZ16K2U Full HD Large Venue 3-Chip DLP Projector from Panasonic has a resolution of 1920 x 1080 with 16,000 Lumens of brightness, and features long lamp replacement cycles of up to 3,000 hours. These features make this projector great for large venue applications. Its real motion processor combines frame-creation and 120 Hz processing for fluid motion reproduction. The clarity processor delivers crisp and detailed image quality, providing a 10,000:1 contrast ratio with Dynamic Iris. This projector offers System Daylight View 3 for enhanced color performance in bright rooms and mapping applications, a Waveform Monitor function that allows for easy adjustment of black and white levels, and DICOM Simulation Mode for medical presentations and training. Additionally, it provides a liquid cooling system and highly efficient quad-lamp setup to reduce operational noise.
Specifications
- Brightness:16,000 ANSI Lumens
- Resolution:1920x1080
- Aspect Ratio:16:9 (HD)
- Contrast:10,000:1 (full on/off)
- Dynamic Iris:Yes
- Display Type:0.95" DLP x 3
- Color Processing:8-bit
- Video Modes:720p, 1080i, 1080p/60, 1080p/24, 1080p/25, 1080p/30, 1080p/50, 1035i, 525i, 525p, 576i, 576p, 625i, 625p, 480p, 480i
- Data Modes:MAX 1920x1200
- Lamp Type:432W UHM bulb x 4
- Lamp Model:ET-LAD520 Buy Replacement Lamp
- Included Lens:No
- Optional Lenses
- ET-D75LE10 Zoom 1.30:1-1.70:1
- ET-D75LE20 Zoom 1.70:1-2.40:1
- ET-D75LE30 Zoom 2.40:1-4.70:1
- ET-D75LE40 Zoom 4.60:1-7.40:1
- ET-D75LE50 Fixed 0.70:1
- ET-D75LE6 Zoom 0.90:1-1.10:1
- ET-D75LE8 Zoom 7.30:1-13.80:1
- ET-D75LE90 Fixed 0.36:1
- Lens Shift:Horizontal /-20% & Vertical /-60%
- Digital Keystone:Horizontal & Vertical
- Projector Size:11.46" x 24.41" x 31.50" (HxWxD)
- Weight:90.4 lbs
- Audible Noise:46 dB
- Internal Speakers:No
- Power:2,060 Watts 200V - 240V
- Connection Panel
- Composite: BNC
- DVI Digital Input
- HD-SDI: BNC
- HDBaseT: RJ-45
- HDMI
- Network: RJ-45
- RGB In: BNC
- RS232: DB-9pin
- S-Video
- VGA In: Dsub-15pin
- Features
- Picture-in-Picture
- DICOM
- Edge Blending
- Geometric Correction
- Frame Interpolation
- Lens Memory
- Crestron RoomView™
